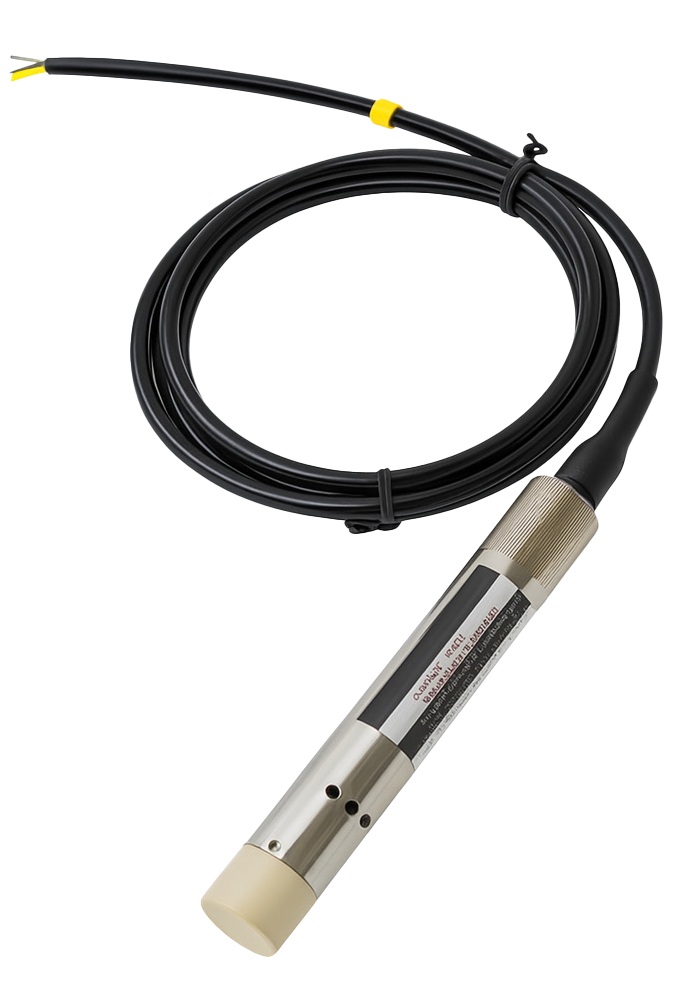

CTD100

Conductivity – Temperature – Depth Sensor

CTD100 is a pressure-type hydrological and water quality measuring instrument with good stability, high precision, low power consumption, small size and full functions.
The product uses a high-precision and highstability pressure sensor as the pressure sensing element. The output data undergoes
internal intelligent linear correction and temperature compensation, which meets the demand for high precision and high stability of the product. It is suitable for measuring seawater and fresh water, surface water, groundwater and in marine environments.

The electroconductivty measurement uses four-electrode technology. Compared with the traditional two-electrode conductivity sensor, it has higher accuracy, wider measurement
range and excellent stability.

The four-electrode conductivity sensor completely solves the polarization problem in high conductivity test; it also solves the problem of inaccurate readings caused by electrode contamination.

Parameter/Model
CTD100
Application Hydrology and Flood Monitoring
x
Application Wastewater and Industrial Monitoring
x
Application Irrigation Monitoring
x
Application Snow Monitoring
-
Application Coastal and Ocean Monitoring
x
Application Meteorology
x
Conductivity Measurement Range
0 – 40 ms/cm
Conductivity Measurement Accuracy
±1%
Water Level (Depth) Measurement Range
0 – 25 m
Water Level (Depth) Measurement Accuracy
±0.1 %FS or ±2% of current measurement whichever is lower
Temperature Measurement Range
0 – 60 °C
Temperature Measurement Accuracy
± 0.1 °C
Power Supply
12 – 30 VDC
Power Consumption
< 0.12 W in active mode < 0.06 mW in sleep mode
Power Input Protection
Reverse power protection, surge protection
Data Interface
RS-485
Data Protocol
Modbus-RTU
Cable Length
25 m
Enclosure Material
316L stainless steel
Enclosure Rating
IP68
  • Accurate multi-parameter measurement of water
    parameters
  • Robust stainless steel 316L enclosure
  • Low power consumption
