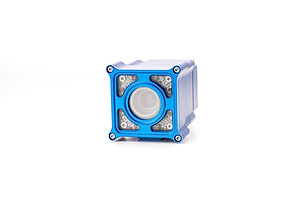

HydroCam Camera



Product Highlights

  • Takes periodic snapshots of monitoring sites for remote inspection

  • Easier detection of natural monitoring obstacles

  • Included IR reflector for night mode and day/night switchable filter

  • Remotely controllable zoom/focus lens

  • Wide temperature operational range -20 °C to +60 °C



Applications

  • Observation of monitoring site condition

  • Maintainance planing

  • Staff gauge monitoring

  • Visual inspection of ice, sediment and pollutants

  • Visual control for waste water tretment plants


Products Description
The Geolux HydroCam is a monitoring camera specifically designed for remote visual observation of the hydrological monitoring site. Versatile communication interfaces (RS-232, RS-485, CAN, SDI-12, Ethernet) enable easy integration with Geolux or third-party dataloggers. Integrated switchable day/night filters and a high-quality motorized zoom/focus lens enable the Geolux HydroCam to withstand wide temperature ranges and operation in almost any environmental monitoring application.

Detailed Specifications

Sensor                                          CMOS 5Mpix 1/4”

Image Resolution                    2592x1944 (Default), 2048x1536,

                                                         1920x1080, 1600x1200, 1280x960,

                                                         1024x768, 800x600, 640x480,

                                                         320x240,160x120

Image Compression              JPEG

Optics                                           Motorized zoom and focus

Focal Length                             6 mm to 22 mm

Field of View                             46.4° to 16.3°

Minimum Illumination           0.1 lux

IR-Cut Filter                               650 nm

Data Transfer                            RS-232, CAN, Ethernet

Camera Control                        RS-232, CAN, Ethernet, SDI-12,                                                                          Modbus

Input Voltage                             9 to 27 VDC

Current Consumption           75 mA (Typical), 150 mA (Maximal)

Operating Temperature       -20 °C to +60 °C

Dimension                                   150 x 70 x 110 mm

Weight                                           600 g

Mechanical Drawing


Downloads

Documents

Software
